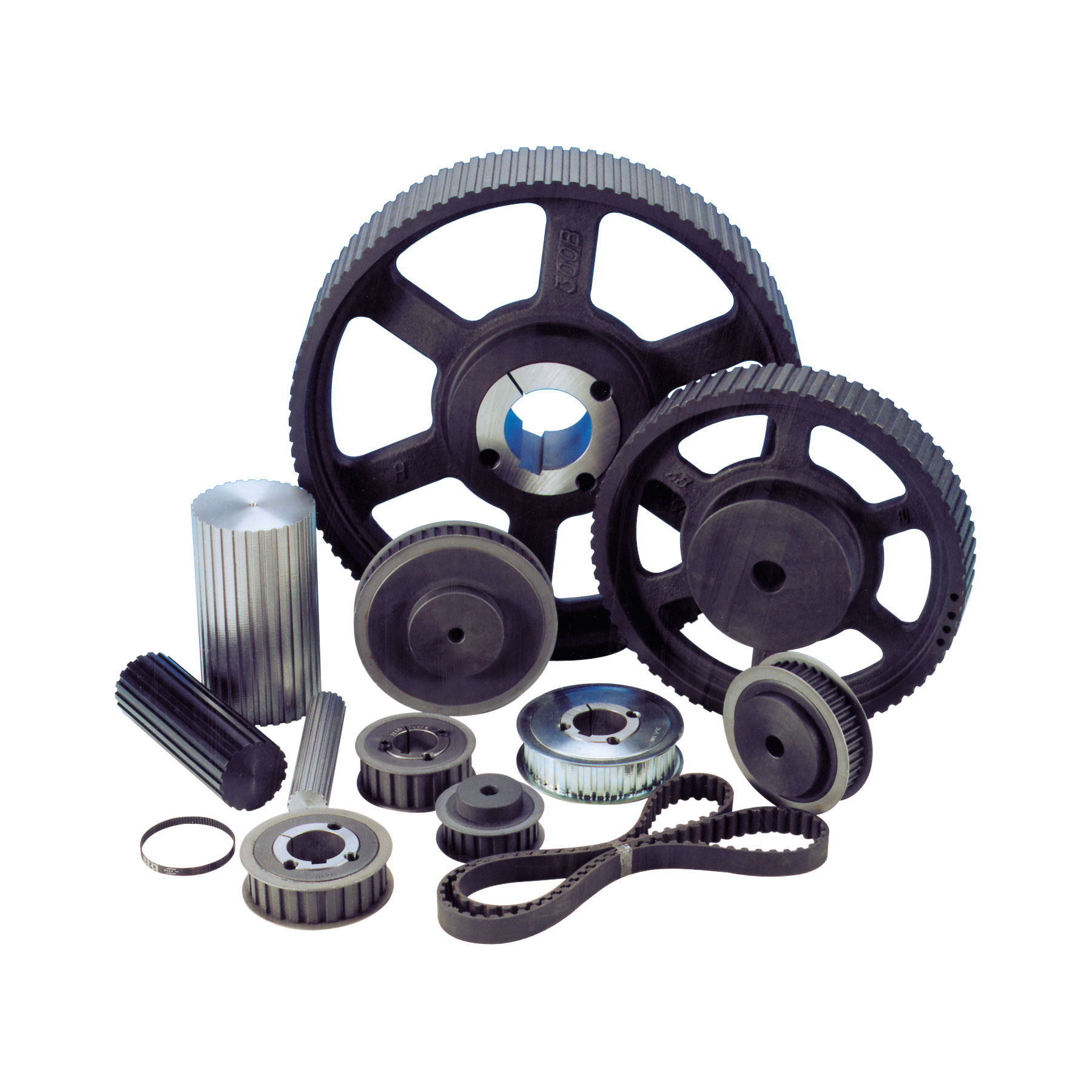

參數介紹：
梯形齒：MXL、XL、L、H、XH、XXH。
編號示例：
14H075F-50H075，表示：14至50代表齒數、H代表節距H型1/2"(12.70mm)、075代表同步帶輪總寬度代號、
F為擋圈。
產品范圍：
系列標準 | 產品形式 | 尺寸范圍（齒數或孔徑等） |
美標/歐標 | MXL025,PITCH-0.08"(2.032mm) | 16MXL025F-72MXL025 |
XL307,PITCH-1/5"(5.08mm) | 10XL037F-72XL037 | |
L050,PITCH-3/8"(9.525mm) | 10L050F-96L050 | |
L075,PITCH-3/8"(9.525mm) | 10L075F-96L075 | |
L100,PITCH-3/8"(9.525mm) | 10L100F-96L100 | |
H075,PITCH-1/2"(12.70mm) | 14H075F-50H075 | |
H100,PITCH-1/2"(12.70mm) | 14H100F-150H100 | |
H150,PITCH-1/2"(12.70mm) | 14H150F-150H150 | |
H200,PITCH-1/2"(12.70mm) | 14H200F-150H200 | |
H300,PITCH-1/2"(12.70mm) | 14H300F-156H300 | |
XH200,PITCH-7/8"(22.22mm) | 18XG200F-120XH200 | |
XH300,PITCH-7/8"(22.22mm) | 18XH300F-120XH300 | |
XH400,PITCH-7/8"(22.22mm) | 18XH400F-120XH400 | |
XXH200,PITCH-1 1/4"(31.75mm) | 18XXH200F-90XXH200 | |
XXH300,PITCH-1 1/4"(31.75mm) | 18XXH300F-90XXH300 | |
XXH400,PITCH-1 1/4"(31.75mm) | 18XXH400F-90XXH400 | |
XXH500,PITCH-1 1/4"(31.75mm) | 18XXH500F-90XXH500 |
美標樣本：
SB梯形齒同步帶輪-美標.pdf
歐標樣本：SB梯形齒同步帶輪-歐標.pdf
